Note: This file is part of Linux Shell Scripting Tutorial, and contains many Linux/Unix definition, miscellaneous concepts and answer to many shell scripts exercise section.


Free

Linux is free.

First ,It's available free of cost (You don't have to pay to use this OS, other OSes like MS-Windows or Commercial version of Unix may cost you money)

Second free means freedom to use Linux, i.e. when you get Linux you will also get source code of Linux, so you can modify OS (Yes OS! Linux OS!!) according to your taste.

It also offers many Free Software applications, programming languages, and development tools etc. Most of the Program/Software/OS are under GNU General Public License (GPL).

Unix Like

Unix is almost 35 year old Os.

In 1964 OS called MULTICS (Multiplexed Information and Computing System) was developed by Bell Labs, MIT & General Electric. But this OS was not the successful one.

Then Ken Thompson (System programmer of Bell Labs) thinks he could do better (In 1991, Linus Torvalds felt he could do better than Minix - History repeats itself.). So Ken Thompson wrote OS on PDP - 7 Computer, assembler and few utilities, this is know as Unix (1969). But this version of Unix is not portable. Then Unix was rewrote in C. Because Unix written in 'C', it is portable. It means Unix can run on verity of Hardware platform (1970-71).

At the same time Unix was started to distribute to Universities. There students and professor started more experiments on Unix. Because of this Unix gain more popularity, also several new features are added to Unix. Then US govt. & military uses Unix for there inter-network (now it is know as INTERNET).

So Unix is Multi-user, Multitasking, Internet-aware Network OS.  Linux almost had same Unix Like feature for e.g.

Open Source

Linux is developed under the GNU Public License. This is sometimes referred to as a "copyleft", to distinguish it from a copyright.

Under GPL the source code is available to anyone who wants it, and can be freely modified, developed, and so forth. There are only a few restrictions on the use of the code. If you make changes to the programs , you have to make those changes available to everyone. This basically means you can't take the Linux source code, make a few changes, and then sell your modified version without making the source code available. For more details, please visit the open-source home page.

Common vi editor command list

For this PurposeUse this vi Command Syntax
To insert new textesc + i ( You have to press 'escape' key then 'i')
To save fileesc + : + w (Press 'escape' key  then 'colon' and finally 'w')
To save file with file name (save as)esc + : + w  "filename"
To quit the vi editoresc + : + q
To quit without savingesc + : + q!
To save and quit vi editoresc + : + wq
To search for specified word in forward directionesc + /word (Press 'escape' key, type /word-to-find, for e.g. to find word 'shri', type as
/shri)
To continue with search n
To search for specified word in backward directionesc + ?word (Press 'escape' key, type word-to-find)
To copy the line where cursor is locatedesc + yy
To paste the text just deleted or copied at the cursoresc + p
To delete entire line where cursor is locatedesc + dd
To delete word from cursor positionesc + dw
To Find all occurrence of given word and Replace then globally without confirmation esc + :$s/word-to-find/word-to-replace/g

For. e.g. :$s/mumbai/pune/g
Here word "mumbai" is replace with "pune"



To Find all occurrence of given word and Replace then globally with confirmationesc + :$s/word-to-find/word-to-replace/cg
To run shell command like ls, cp or date etc within viesc + :!shell-command

For e.g. :!pwd

How Shell Locates the file

To run script, you need to have in the same directory where you created your script, if you are in different directory your script will not run (because of path settings), For e.g.. Your home directory is ( use $ pwd to see current working directory) /home/vivek. Then you created one script called 'first', after creation of this script you moved to some other directory lets say /home/vivek/Letters/Personal, Now if you try to execute your script it will not run, since script 'first' is in /home/vivek directory, to overcome this problem there are two ways first, specify complete path of your script when ever you want to run it from other directories like giving following command

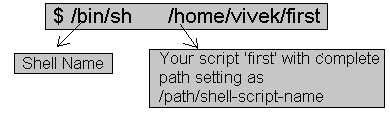

$ /bin/sh   /home/vivek/first


Now every time you have to give all this detailed as you work in other directory, this take time and you have to remember complete path.

There is another way, if you notice that all of our programs (in form of executable files) are marked as executable and can be directly executed from prompt from any directory. (To see executables of our normal program give command $ ls -l /bin ) By typing commands like
$ bc
$ cc myprg.c
$ cal
etc, How its possible? All our executables files are installed in directory called /bin and /bin directory is set in your PATH setting, Now when you type name of any command at $ prompt, what shell do is it first look that command in its internal part (called as internal command, which is part of Shell itself, and always available to execute), if found as internal command shell will execute it, If not found It will look for current directory, if found shell will execute command from current directory, if not found, then Shell will Look PATH setting, and try to find our requested commands executable file in all of the directories mentioned in PATH settings, if found it will execute it, otherwise it will give message "bash: xxxx :command not found", Still there is one question remain can I run my shell script same as these executables?, Yes you can, for this purpose create bin directory in your home directory and then copy your tested version of shell script to this bin directory. After this you can run you script as executable file without using command like
$ /bin/sh   /home/vivek/first

Command to create you own bin directory.
$ cd
$ mkdir bin
$ cp first ~/bin
$ first

Each of above commands can be explained as follows:
Each of above commandExplanation
$ cdGo to your home directory
$ mkdir binNow created bin directory, to install your own shell script, so that script can be run as independent program or can be accessed from any directory
$ cp   first ~/bincopy your script 'first' to your bin directory
$ firstTest whether script is running or not (It will run)



Answer to Variable sections exercise

Q.1.How to Define variable x with value 10 and print it on screen.
$ x=10
$ echo $x

Q.2.How to Define variable xn with value Rani and print it on screen
For Ans. Click here
$ xn=Rani
$ echo $xn

Q.3.How to print sum of two numbers, let's say 6 and 3
$ echo 6 + 3
This will print 6 + 3, not the sum 9, To do sum or math operations in shell use expr, syntax is as follows
Syntax:
expr   op1   operator   op2
Where, op1 and op2 are any Integer Number (Number without decimal point) and operator can be
+ Addition
- Subtraction
/ Division
% Modular, to find remainder For e.g. 20 / 3 = 6 , to find remainder 20 % 3 = 2, (Remember its integer calculation)
\* Multiplication
$ expr 6 + 3
Now It will print sum as 9 , But
$ expr 6+3
will not work because space is required between number and operator (See Shell Arithmetic)

Q.4.How to define two variable x=20, y=5 and then to print division of x and y (i.e. x/y)
For Ans. Click here
$x=20
$ y=5
$ expr x / y


Q.5.Modify above and store division of x and y to variable called z
For Ans. Click here
$ x=20
$ y=5
$ z=`expr x / y`
$ echo $z

Q.6.Point out error if any in following script

$ vi   variscript
#
#
# Script to test MY knolwdge about variables!
#
myname=Vivek
myos   =  TroubleOS    ----->
ERROR 1
myno=5
echo "My name is $myname"
echo "My os is $myos"

echo "My number is   myno,   can you see this number"
----> ERROR 2

ERROR 1 Read this

ERROR 2 Read this

Following script should work now, after bug fix!

$ vi   variscript
#
#
# Script to test MY knolwdge about variables!
#
myname=Vivek
myos=TroubleOS
myno=5
echo "My name is $myname"
echo "My os is $myos"
echo "My number is   $myno,   can you see this number"

Parameter substitution.

Now consider following command
$($ echo 'expr 6 + 3')

The command ($ echo 'expr 6 + 3')  is know as Parameter substitution. When a command is enclosed in backquotes, the command get executed and we will get output. Mostly this is used in conjunction with other commands. For e.g.

$pwd
$cp /mnt/cdrom/lsoft/samba*.rmp `pwd`

Now suppose we are working in directory called "/home/vivek/soft/artical/linux/lsst" and I want to copy some samba files from "/mnt/cdrom/lsoft" to my current working directory, then my command will be something like

$cp   /mnt/cdrom/lsoft/samba*.rmp    /home/vivek/soft/artical/linux/lsst

Instead of giving above command I can give command as follows

$cp  /mnt/cdrom/lsoft/samba*.rmp  `pwd`

Here file is copied to your working directory. See the last Parameter substitution of `pwd` command, expand it self to /home/vivek/soft/artical/linux/lsst. This will save my time.
$cp  /mnt/cdrom/lsoft/samba*.rmp  `pwd`


Future Point:
What is difference between following two command?
$cp  /mnt/cdrom/lsoft/samba*.rmp  `pwd`


A N D

$cp  /mnt/cdrom/lsoft/samba*.rmp  .


Try to note down output of following Parameter substitution.

$echo "Today date is `date`"
$cal > menuchoice.temp.$$
$dialog --backtitle "Linux Shell Tutorial"  --title "Calender"  --infobox  "`cat  menuchoice.temp.$$`"  9 25 ; read

Answer to if command.

A) There is file called foo, on your disk and you give command, $ ./trmfi   foo what will be output.
Ans.: foo file will be deleted, and message "foo file deleted" on screen will be printed.

B) If bar file not present on your disk and you give command, $ ./trmfi   bar what will be output.
Ans.: Message "rm: cannot remove `bar': No such file or directory" will be printed because bar file does not exist on disk and we have called rm command, so error from rm commad

C) And if you type $ ./trmfi, What will be output.
Ans.:  Following message will be shown by rm command, because rm is called from script without any parameters.
rm: too few arguments
Try `rm --help' for more information.

Answer to Variables in Linux.

1) If you want to print your home directory location then you give command:
     (a) $ echo $HOME

                    or

     (b) $ echo HOME

Which of the above command is correct & why?

Ans.: (a) command is correct, since we have to print the contains of variable (HOME) and not the HOME. You must use $ followed by variable name to print variables cotaines.

Answer to Process Section.

1) Is it example of Multitasking?
Ans.: Yes, since you are running two process simultaneously.

2) How you will you find out the both running process (MP3 Playing & Letter typing)?
Ans.: Try $ ps aux or $ ps ax | grep  process-you-want-to-search

3) "Currently only two Process are running in your Linux/PC environment", Is it True or False?, And how you will verify this?
Ans.: No its not true, when you start Linux Os, various process start in background for different purpose. To verify this simply use top or ps aux command.

4) You don't want to listen music (MP3 Files) but want to continue with other work on PC, you will take any of the following action:

  1. Turn off Speakers
  2. Turn off Computer / Shutdown Linux Os
  3. Kill the MP3 playing process
  4. None of the above

Ans.: Use action no. 3 i.e. kill the MP3 process.
Tip: First find the PID of MP3 playing process by issuing command:
$ ps ax | grep mp3-process-name
Then in the first column you will get PID of process. Kill this PID to end the process as:
$ kill  PID

Or you can try killall command to kill process by name as follows:
$ killall  mp3-process-name

Linux Console (Screen)

How can I write colorful message on Linux Console? , mostly this kind of question is asked by newcomers (Specially those who are learning shell programming!). As you know in Linux everything is considered as a file, our console is one of such special file. You can write special character sequences to console, which control every aspects of the console like Colors on screen, Bold or Blinking text effects, clearing the screen, showing text boxes etc. For this purpose we have to use special code called escape sequence code.  Our Linux console is based on the DEC VT100 serial terminals which support ANSI escape sequence code.

What is special character sequence and how to write it to Console?

By default what ever you send to console it is printed as its. For e.g. consider following echo statement,
$ echo "Hello World"
Hello World
Above echo statement prints sequence of character on screen, but if there is any special escape sequence (control character) in sequence , then first some action is taken according to escape sequence (or control character) and then normal character is printed on console. For e.g. following echo command prints message in Blue color on console
$ echo -e "\033[34m   Hello Colorful  World!"
Hello Colorful  World!

Above echo statement uses ANSI escape sequence (\033[34m), above entire string ( i.e.  "\033[34m   Hello Colorful  World!" ) is process as follows

1) First \033, is escape character, which causes to take some action
2) Here it set screen foreground color to Blue using [34m escape code.
3) Then it prints our normal message Hello Colorful  World! in blue color.

Note that ANSI escape sequence begins with \033 (Octal value) which is represented as ^[ in termcap and terminfo files of terminals and documentation.

You can use echo statement to print message, to use ANSI escape sequence you must use -e option (switch) with echo statement, general syntax is as follows
Syntax
echo   -e  "\033[escape-code    your-message"

In above syntax you have to use\033[ as its with different escape-code for different operations. As soon as console receives the message it start to process/read it, and if it found escape character (\033) it moves to escape mode, then it read "[" character and moves into Command Sequence Introduction (CSI) mode. In CSI mode console reads a series of ASCII-coded decimal numbers (know as parameter) which are separated by semicolon (;) . This numbers are read until console action letter or character is not found (which determines what action to take). In above example

\033Escape character
[Start of CSI
3434 is parameter
mm is letter (specifies action)

Following table show important list of such escape-code/action letter or character

Character or letterUse in CSIExamples
hSet the ANSI modeecho -e "\033[h"
lClears the ANSI modeecho -e "\033[l"
mUseful to show characters in different colors or effects such as BOLD and Blink, see below for parameter taken by m.echo -e  "\033[35m Hello World"
qTurns keyboard num lock, caps lock, scroll lock LED on or off, see below.echo -e "\033[2q"
sStores the current cursor x,y position (col , row position) and attributesecho -e "\033[7s"
uRestores cursor position and attributesecho -e "\033[8u"

m understand following parameters

ParameterMeaningExample
0Sets default color scheme (White foreground and Black background), normal intensity, no blinking etc.
1Set BOLD intensity$ echo -e "I am \033[1m BOLD \033[0m Person"
I am BOLD Person
Prints BOLD word in bold intensity and next ANSI Sequence remove bold effect (\033[0m)
2Set dim intensity$ echo -e "\033[1m  BOLD \033[2m DIM  \033[0m"
5Blink Effect$ echo -e "\033[5m Flash!  \033[0m"
7Reverse video effect i.e. Black foreground and white background in default color scheme$ echo -e "\033[7m Linux OS! Best OS!! \033[0m"
11Shows special control character as graphics character. For e.g. Before issuing this command press alt key (hold down it) from numeric key pad press 178 and leave both key; nothing will be printed. Now give --> command shown in example and try the above, it works. (Hey you must know extended ASCII Character for this!!!)$ press alt + 178
$ echo -e "\033[11m"
$ press alt + 178
$ echo -e "\033[0m"
$ press alt + 178

25Removes/disables blink effect
27Removes/disables reverse effect
30 - 37Set foreground color
31 - RED
32 - Green
xx - Try to find yourself this left as exercise for you :-)
$ echo -e "\033[31m I am in Red"
40 - 47Set background color
xx - Try to find yourself this left as exercise for you :-)
$ echo -e "\033[44m Wow!!!"

q understand following parameters

ParametersMeaning
0Turns off all LEDs on Keyboard
1Scroll lock LED on and others off
2Num lock LED on and others off
3Caps lock LED on and others off

Click here to see example of q command.

Click here to see example of m command.

Click here to see example of s and u command.

This is just quick introduction about Linux Console and what you can do using this Escape sequence. Above table does not contains entire CSI sequences. My up-coming tutorial series on C Programming Language will defiantly have entire story with S-Lang and curses (?). What ever knowledge you gain here will defiantly first step towards the serious programming using c. This much knowledge is sufficient for  Shell Programming, now try the following exercise :-) I am Hungry give me More Programming Exercise & challenges! :-)

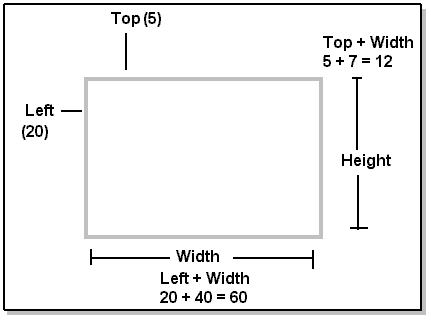

1) Write function box(),  that will draw box on screen (In shell Script)
    box (left, top, height, width)
    For e.g. box (20,5,7,40)




Hint: Use ANSI Escape sequence
1) Use of 11 parameter to m
2) Use following for cursor movement
   row;col H
      or
   rowl;col f

  For e.g.
  $ echo   -e "\033[5;10H Hello"
  $ echo   -e "\033[6;10f Hi"

In Above example prints Hello message at row 5 and column 6 and Hi at 6th row and 10th Column.

Shell Built in Variables

Shell Built in VariablesMeaning
$#Number of command line arguments. Useful to test no. of command line args in shell script.
$*All arguments to shell
$@Same as above
$-Option supplied to shell
$$PID of shell
$!PID of last started background process (started with &)

See example of $@ and $* variable.
